Humengi®

Use your imagination.

What you see is what you get. If you can imagine it, Humengi® can help you design and build it with high-precision accuracy to 1 mm.

Humengi®

A flexible design tool.

Humengi® is not just blocks. It is a construction engineering technology tool that makes project design and implementation faster, easier and more efficient. Our manufacturing technology shifts the hard work to the production factory, making your job easier at the design desk and the worksite.

Humengi®

Engineering Technical Data

Compared to the standard ASTM C90 hollow block, Humengi achieves greater maximum efficiency with a minimal amount of material. In laboratory tests, the 6" Humengi block is stronger than the 8" ASTM C90.

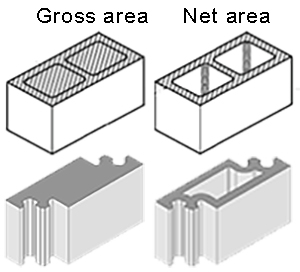

Humengi® provides a larger net area in smaller gross area to create a stronger block unit, as illustrated in the table below.

Humengi® blocks are lighter, meaning easier handling onsite.

Humengi® walls use less material, meaning lighter walls and lower total dead load.

As shown in the table below, Humengi® has a larger net area and smaller gross area using less material volume with a lighter total weight.

ASTM C90 and Humengi®
1x1 Meter Wall section 8" Humengi®
Block height (mm) 200 200
Block face length (mm) 400 300
Block thickness (mm) 203 150
Unit net area (m2) 0.036036 0.027896
Unit gross area (m2) 0.081200 0.044147
No. of units in 1 m of wall length 2.5 3.33
Total net area of 1m of wall length in m2 0.09009 0.092894
Total gross area of 1m of wall length in m2 0.203 0.147
No. of units in 1 m2 of wall area 12.5 16.667
Unit Volume m3 0.007207 0.005579
Unit mortar Volume m3 0.001839 zero
Total Volume of 1 m2 of wall in m3 0.113075 0.092985
Unit Weight (2200 Kg/m3 density) in Kg 15.135007 11.716
Unit mortar Weight in Kg 3.86169 zero
Total weight of 1 m2 of wall in Kg 237.459 195.271

Designers can calculate any building design depending on the data in this table. The benefits are clear.

Humengi®

Full control of all elements.

Humengi® technology ensures universal manufacturing accuracy standards at all factories around the world.

We provide free replacement of high-accuracy Humengi® molds to all licensed factories. This guarantees 99.99% production accuracy from any Humengi® licensed factory around the world.

We provide special forming dies to Humengi® licensed factories to form the steel reinforcement skeletons used within Humengi® walls. By using the highest quality steel, we guarantee 99.99% product accuracy for steel skeletons from any Humengi® licensed factory.

All licensed Humengi® factories will have crush testing equipment to verify block quality and required strength.

Humengi® technology training centers ensure that enough trained, qualified and certified workers are available for the construction sector.
